PRODUCT DESCRIPTION

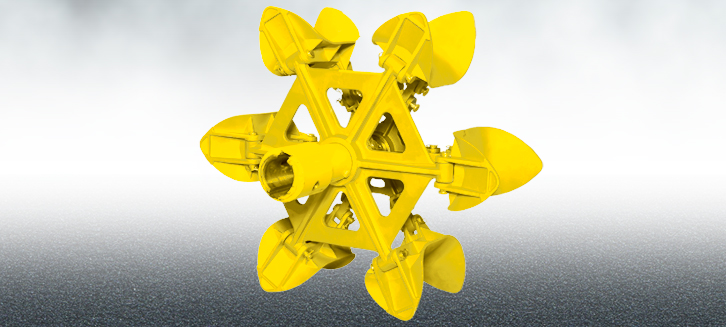

The Schutt Industries CR Collapsible Reel is used to take up wire or small diameter cable. The design allows the wire to be wound onto the reel and then removed in a neat coil by turning the handle which collapses the outer rim of the pick-up reel.
INSTALATION: Mounts on a 2-7/16” Winch Shaft Extension
CAPACITY: 200 lbs of Wire or Cable
PULL RATING: 3500 lbs Maximum Allowable Pull (bare drum)
DIAMETER: Reel O.D. 28” (expanded), 18-3/4” (collapsed), I.D. 20”
WEIGHT: 68 lbs.
