PRODUCT DESCRIPTION

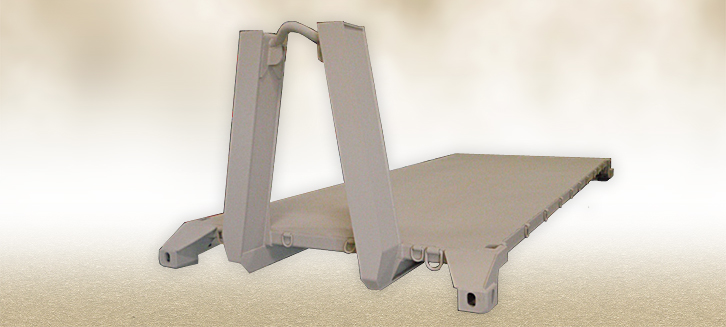

The Schutt Industries Flatrack Pallet is a heavy-duty welded frame and forward wall which forms a cargo carrier designed for but not limited to an ISO 20' Container. The Flatrack Pallet is used with load handling systems such as the Schutt Industries Hydraulic Hook Lift System (HHLS).
The structural uprights of the Flatrack Pallet support the hookbar which couples with the truck’s hook arm to lift and pull the Flatrack Pallet onto the truck.
The Flatracks rails have locking plates that mate with plates on the truck and trailer to secure the Flatrack during transportation. The flatrack rails also have rectangular cutouts which allow the Flatrack to be lifted with a forklift.
The Flatrack Pallet incorporates corner ISO locks / fittings that interlock with a standard ISO 20 ft. (6.10m) container. This allows the flatrack to be secured on any equipment capable of locking down an ISO container, including ships and trailers.
